1] What is Subversion?
Subversion is a beautiful free/open source tool (software) to manage changes made to your information. Subversion manages files and directories, and the changes made to them over time. This allows you to recover older versions of your data or examine the history of how your data changed. Subversion can operate across networks, which allows it to be used by people on different computers.
2] Different methods of accessing subversion (svn) repository ?
There are three different methods of accessing subversion repository…
a) Local filesystem or Network filesystem accessed by client directly
b) Apache HTTP using WebDAV module
c) svnserve tunneled over an SSH (svn + ssh)
For more informatio, please refer the article http://www.indiangnu.org/2006/different-methods-of-accessing-subversion-svn-repository/

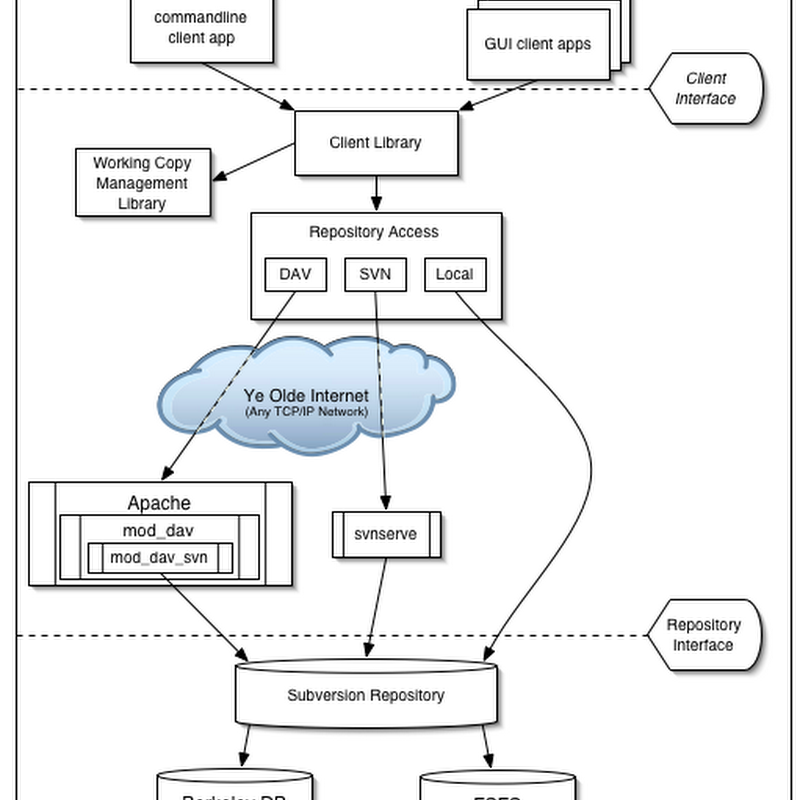

3] Subversion architectue –
Subversion provides two backends to store the data in svn repository
a) FSFS – Fast and Secure File Systtem –
FSFS backend provides quite a bit more flexibility in terms of its supported deployment scenarios. More flexibility means you have to work a little harder to find ways to deploy it incorrectly. FSFS is the default backend
b) Berkeley DB File system -
Berkeley DB provides real transaction support—perhaps its most powerful feature. Another great feature of Berkeley DB is hot backups—the ability to backup the database environment without taking it “offline”. But Berkeley DB environments are not portable!!
root@arun:~# ls -l /var/repos_base/myrepository/
total 28
drwxr-xr-x 2 arunsb www-data 4096 2008-12-27 15:30 conf
drwxr-xr-x 2 arunsb www-data 4096 2008-12-26 16:34 dav
drwxr-sr-x 5 arunsb www-data 4096 2008-12-27 15:27 db
-r–r–r– 1 arunsb www-data 2 2008-12-26 16:34 format
drwxr-xr-x 2 arunsb www-data 4096 2008-12-26 16:34 hooks
drwxr-xr-x 2 arunsb www-data 4096 2008-12-26 16:34 locks
-rw-r–r– 1 arunsb www-data 229 2008-12-26 16:34 README.txt
root@arun:~#
fsfs
root@arun:~#
Subversion –
Ubuntu -
root@arun:~# apt-get install subversion subversion-tools
5] How to configure Subversion with Apache HTTP and WebDAV module -
Step (1) First of all we need to create the subversion repository….
root@arun:~# svnadmin create /var/repos_base/myrepository
root@arun:~#
* Make sure to set/change owership/permission of svn repository for Apache webserver user (www-data is apache user)
root@arun:/var/repos_base# chown arunsb:www-data -R /var/repos_base/
root@arun:~# chmod 775 -R /var/repos_base/
root@arun:~#
root@arun:~# ls -l /var/repos_base/
-rwxrwxr-x 1 arunsb www-data 63 2008-12-03 15:50 common_userdb
drwxrwxr-x 7 arunsb www-data 4096 2008-12-03 15:48 myrepository
root@arun:~#
Step (2) Authentication – common user DB for all repositories -
Let us create a file “/var/repos_base/common_userdb” which will contain users information in file and add few users…
root@arun:/var/repos_base# htpasswd -c /var/repos_base/common_userdb arunsb
New password:
Re-type new password:
Adding password for user arunsb
root@arun:/var/repos_base# htpasswd /var/repos_base/common_userdb ravi
New password:
Re-type new password:
Adding password for user ravi
root@arun:/var/repos_base# htpasswd /var/repos_base/common_userdb santhosh
New password:
Re-type new password:
Adding password for user santhosh
root@arun:/var/repos_base# cat /var/repos_base/common_userdb
arunsb:dXxZU5vmHxFoc
ravi:gGEX.dsWcwqzc
santhosh:Jlzed1almY.SY
root@arun:/var/repos_base#
Step (3) Now install Apache , WebDav module for apache -
Ubuntu -
root@arun:~# apt-get install apache2 apache2.2-common libapache2-svn
you need to enable to WebDAV svn module for apache using following command on Ubuntu…
root@arun:~# a2enmod dav dav_svn
root@arun:~#
* Make sure that Apache is running ….
Step (4) Configure svn repository with apache -
root@arun:~# cat /etc/apache2/mods-available/dav_svn.conf
# dav_svn.conf – Subversion/Apache configuration
<Location /myrepository>
DAV svn
#You need either SVNPath and SVNParentPath, but not both.
#use SVNParentPath if you have multiple repositories under one directory
SVNPath /var/repos_base/myrepository
#SVNParentPath /var/repos_base
# Access control is done at 3 levels -
#(1) Apache authentication
#(2) Apache <Limit> and <LimitExcept>
#(3) mod_authz_svn is a svn-specific authorization module
AuthType Basic
AuthName “|| Welcome to Subversion Repository || ”
AuthUserFile /var/repos_base/common_userdb
#To enable authorization via mod_authz_svn
AuthzSVNAccessFile /var/repos_base/myrepository/conf/authz
Require valid-user
#<LimitExcept GET PROPFIND OPTIONS REPORT>
#Require valid-user
#</LimitExcept>
</Location>
## Add entry for other svn repositories
root@arun:~#
* Once done restart the Apache server and try to access svn repository as …
root@arun:~# svn list http://server_name_or_IP/your_repository_name_mentioned_in_dav_svn.conf_file
please refer the article for more operation http://www.indiangnu.org/2006/different-methods-of-accessing-subversion-svn-repository/
6] How to configure Subversion with svnserve tunneled over an SSH (svn + ssh) -
Step (1) Make sure that subversion is installed and repository is created…
Start up script for svnserve is as shown below (ubuntu), please update this file with proper setting…
root@arun:~# cat /etc/init.d/svnserve
#!/bin/bash
# startup script for svn server!
## svnserve –daemon –listen-port 3690 –pid-file /var/run/svn.server
SVN_DAEMON=”/usr/bin/svnserve”
PID_FILE=”/var/run/svn-server.pid”
LOG_FILE=”/var/log/svnserve.log”
SVN_PORT=3690
SVN_ROOT=”/var/repos_base”
case “$1″ in
start)
if [ -f $PID_FILE ];then
check=$(cat $PID_FILE)
echo “Subversion service (svnserve) already running [pid = $check]”
else
echo “Starting the Subversion service (svnserve)..”
$SVN_DAEMON –daemon –root $SVN_ROOT –listen-port $SVN_PORT –pid-file $PID_FILE > $LOG_FILE 2>&1
echo “log file is $LOG_FILE”
echo “…”
echo “Done.”
fi
;;
stop)
echo “killing Subversion service (svnserve)…”
if [ -f $PID_FILE ];then
#killall svnserve
kill -9 $(cat $PID_FILE)
rm $PID_FILE
echo “…”
echo “Done.”
else
echo “NOT running…”
fi
;;
status)
if [ -f $PID_FILE ];then
echo “Subversion service (svnserve) -”
pid_of_svnserve=$(cat $PID_FILE)
echo -e “Running & pid is $pid_of_svnserve”
else
echo “Subversion service (svnserve) NOT running…”
fi
;;
*)
echo “Usage: $0 {start|stop|status}”
exit 1
esac
exit 0
#DONE
root@arun:~#
Step (2) svnserve configuration -
root@arun:~# cat /var/repos_base/myrepository/conf/svnserve.conf
### This file controls the configuration of the svnserve daemon, if you
[general]
### Authenticated users. Valid values are “write”, “read”,
### and “none”. The sample settings below are the defaults.
### The password-db option controls the location of the password file
### The authz-db option controls the location of the authorization
### rules for path-based access control.
realm = || Welcome to Subversion Repository ||
anon-access = none
auth-access = write
authz-db = authz
password-db = passwd
root@arun:~#
Step (3) Authentication for svnserve -
root@arun:~# cat /var/repos_base/myrepository/conf/authz
# single user, to a group of users defined in a special [groups]
# section, or to anyone using the ‘*’ wildcard. Each definition can
# grant read (‘r’) access, read-write (‘rw’) access, or no access (”)
[groups]
svn_admin = arunsb , ravi
# remember here svn name which you mentioned in “dav_svn.conf” file
[myrepository:/]
@svn_admin= rw
[myrepository:/branches]
@svn_admin = rw
santhosh = r
[myrepository:/trunk]
@svn_admin= rw
santhosh = rw
root@arun:~# cat /var/repos_base/myrepository/conf/passwd
### Below it contains one section labelled [users].
### The name and password for each user follow, one account per line.
[users]
arunsb = 1234
ravi = 1234
santhosh = 12345
root@arun:~#
Step (4) Start svnserve with following command -
root@arun:~# /etc/init.d/svnserve
Usage: /etc/init.d/svnserve {start|stop|status}
root@arun:~#
root@arun:~# /etc/init.d/svnserve start
Starting the Subversion service (svnserve)..
log file is /var/log/svnserve.log
…
Done.
root@arun:~# /etc/init.d/svnserve status
Subversion service (svnserve) -
Running & pid is 11346
root@arun:~#
root@arun:~# netstat -nlp | grep svnserve
tcp 0 0 0.0.0.0:3690 0.0.0.0:* LISTEN 11346/svnserve
root@arun:~#
** HELP ?
root@arun:~# svnserve –help
usage: svnserve [options]
Valid options:
-d [--daemon] : daemon mode
–listen-port arg : listen port (for daemon mode)
–listen-host arg : listen hostname or IP address (for daemon mode)
–foreground : run in foreground (useful for debugging)
-h [--help] : display this help
–version : show program version information
-i [--inetd] : inetd mode
-r [--root] arg : root of directory to serve
-R [--read-only] : force read only, overriding repository config file
-t [--tunnel] : tunnel mode
–tunnel-user arg : tunnel username (default is current uid’s name)
-T [--threads] : use threads instead of fork
-X [--listen-once] : listen once (useful for debugging)
–pid-file arg : write server process ID to file arg
root@arun:~#
Troubleshooting -
arunsb@arun:~$ svn co svn://192.168.0.1/myrepository/trunk/ /tmp/12345
svn: Not authorized to open root of edit operation
arunsb@arun:~$
* please add “anon-access = none” to ‘svnserve.conf’ conf file of your repository…
root@arun:~# vi /var/repos_base/myrepository/conf/svnserve.conf
arunsb@arun:~$ svn co svn://192.168.0.1/myrepository/trunk/ /home/arunsb/working_svn
Authentication realm: <svn://192.168.0.1:3690> ” || Welcome to Subversion Repository ||”
Password for ‘arunsb’:
Checked out revision 2.
arunsb@arun:~$
This package includes miscellaneous tools for use with Subversion clients and servers: * svn-backup-dumps: Incremental dumpfile-based backup script * svn-bisect: Bisect revisions to find a regression * svn-clean: Remove unversioned files from a working copy * svn-fast-backup: rsync-based backup script for FSFS repositories * svn-hot-backup: Backup script, primarily for BDB repositories * svn_apply_autoprops: Apply property settings from .subversion/config file to an existing repository * svn_load_dirs: Sophisticated replacement for ‘svn import’ * svn2cl: Generate GNU-style changelog from repository history * svnmerge: Maintain merge history between two related branches (mostly obsolete as of Subversion 1.5) * svnwrap: Set umask to 002 before calling svn or svnserve * several example hook scripts: commit-access-control, commit-email, log-police, mailer, svnperms, verify-po NOTE that some of these scripts are unsupported by upstream, and may change radically or disappear in future releases. The Recommended packages are each required by at least one of these scripts.(dpkg package description)
To install this package in Ubuntu,
To know more about this package, you can use dpkg
